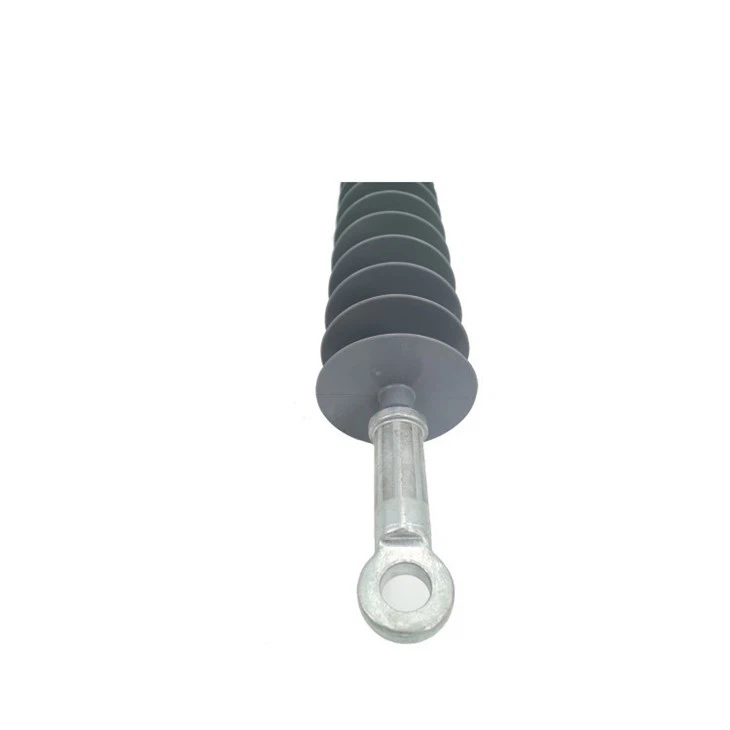

Mahsulot taqdimoti:
Nominal tizim kuchlanishi: 11KV-1000KV
Belgilangan mexanik yuk (SML): 45KN-400KN
Rang: jigarrang, kulrang yoki mijozning talabi
Qo'llaniladigan standart: GB, IEC, ANSI, CAN, BS, AS yoki mijozning talabi
Parametrlar jadvali:
35KV ~ 330KV AC kompozit izolyator
Shakl.7 35KV~66KV AC kompozit izolyator
35KV ~ 66KV AC kompozit izolyatorining umumiy o'lchamlari va xususiyatlari
|
Yo'q. |
Turi |
Nominal kuchlanish KV |
Belgilangan mexanik yuk KN |
Soket va to'p o'lchami |
Bo'lim balandligi H, mm |
Minimal yoy masofasi H, mm |
Katta shiyponning diametri D, mm |
Kichkina saroy diametri d% 2c mm |
Choyshab oralig'i B, mm |
Minimal nominal o'tish masofasi L% 2c mm |
Yoritish impulslariga chidamli kuchlanish dan katta yoki teng |
Nam quvvat chastotasi Kuchlanishi dan katta yoki teng |
Og'irligi kg |
|
1 |
FXBW% 7b{0}}/70 |
35 |
70 |
16 |
610±15 |
430 |
130 |
95 |
45 |
1050 |
230 |
95 |
2.2 |
|
2 |
FXBW% 7b{0}}/70 |
35 |
70 |
16 |
650±15 |
450 |
130 |
95 |
45 |
1050 |
230 |
95 |
2.3 |
|
3 |
FXBW% 7b{0}}/70 |
66 |
70 |
16 |
870±15 |
700 |
128 |
98 |
117 |
1050 |
410 |
185 |
3.5 |
|
4 |
FXBW% 7b{0}}/70 |
66 |
70 |
16 |
940±15 |
760 |
128 |
98 |
117 |
1050 |
410 |
185 |
3.8 |
Mahsulotni qo'llash stsenariysi:
